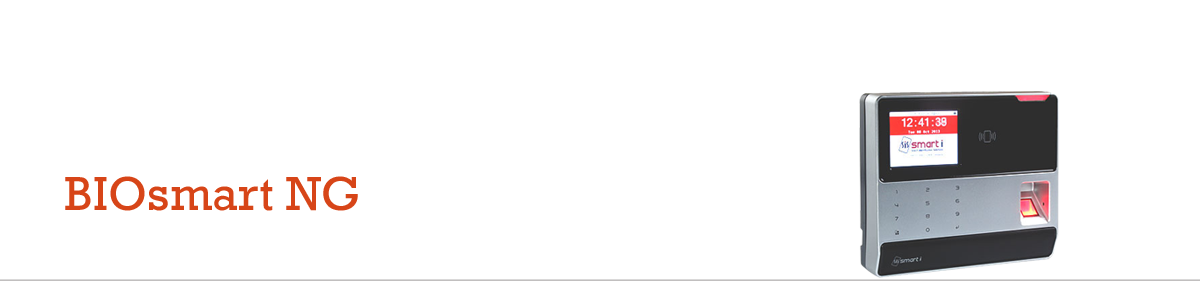

BIOsmart NG - Time Attendance system in dubai

The new BIOsmart NG blends loads of innovative features to streamline installation and administration for small, medium or, large business enterprises for standalone door access control deployment. BIOsmart NG brings high speed, accuracy, flexibility and user friendly interactivity. It provides aesthetic GUI on easy-to-use touch screen LCD with touch sense keypad.

Key Features & Benefits

Suprema Sensor - Accuracy in Finger Verification:- The Suprema Sensor ranks among the best in the world for accuracy in verification, validated by FVC award-winning algorithm.
Suprema Sensor for Auto Finger Update:- smart-i device automatically recognizes the minor natural changes in the finger print over a period of time and automatically updates them for future reference.
OTP - Highest Authentication of Attendance:- The One Time dynamic Password (OTP) for addition/deletion of fingerprints as well as setting of date and time of devices. It ensures that the device's password is not static so that it is not misused by anyone and it will be completely controlled by the administrator.
SD Memory Card - Auto Backup:- Automatic backups of fingerprints, transactions and device configuration within the device itself on SD Memory Card. It ensures that the critical data of the device is secured.
Modular Reader for Card Upgradation:- It gives freedom to the users to upgrade their card reader technology without replacing the complete device.

Technical Specifications

Particular	Specification
Model No.	SBNG1930 Series
Application	Access Control & Time Attendance

Hardware

CPU	ARM 32 Bit RISC Processor
Memory	4 GB SD and 8 MB Flash
Events / Transactions	Upto 1,00,000
Users	Upto 1900
No. of templates	19000 (1:N/1:1) {Expandable upto 3 Lakhs in 1:1}
Operation Modes	Card Only; UID + Finger; Card + Finger; Finger Only; UID only (On Wiegand Card Only, Finger only & Card+ Finger)
Sensor	High Quality Scratch Resistance Optical Sensor
Finger Score	Display Finger quality score at the time of finger registration
Card Reader Options(extra Module)	Mifare®; HID (I Class), HID Prox, EM cards
Communications Port	TCP/IP, wiegand, RS485,POE*
Baud Rate	9600bps (Default)
Controller ID	Upto 10,000
LCD	3.5" TFT Touch Screen LCD
Keypad	Capacitive Touch Sense Keypad
LED	Bicolor LED Bar
Language	English
Sound	Various Beep sound indication
Power Supply	12 V DC/ 2A (Min), POE (optional, only For T&A App.)
Enclosure	ABS Plastic
Color/ Weight	Silver & Black
Dimension (H X W X D) in mm	200 X 170 X 42
Mounting	Wall Mounting

Sensor

Type	Optical
Image Resolution	500 dpi
Enrollment Time	1 sec
Verification Time	sec
Authentication / Identification	1:1& 1:N (User Groups facility for faster verification)
Identification Time (1:1000)	1 sec
Template Size	384 bytes
EER / FAR/ FRR	0.1% / 0.001% / 0.1%
Image Size (pixels)	272 X 320
Sensing Area (mm)	16 X 19
