Dependable Fault Tolerant Systems for faultless
operation

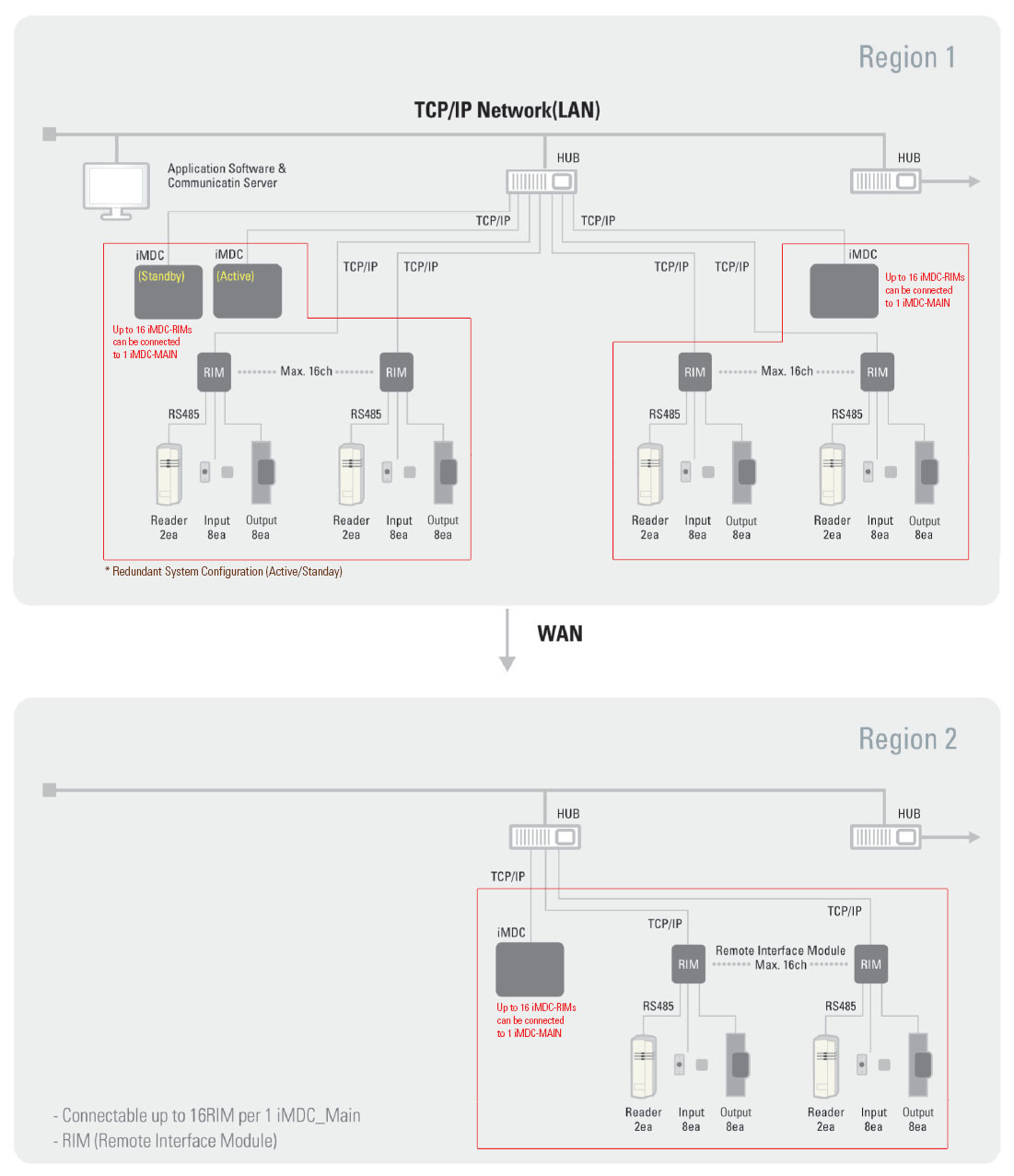

- Able to set up for redundant between iMDC-Main
- User configurable relay output available for device(iMDC-RIM) error
- Self-diagnosis of device to automatically reset the system
- Complete control of a maximum of 16 Remote Interface Modules (Controlling up to 32 Doors)
- Max.128 supervised inputs (cut off check) port / Max 128 supervised output (Relay) port
- 200,000 users / Up to 200,000 event buffers
- 128 Time Schedules
Unprecedented Scalability and Adaptability
- Easily expandable by simply adding Remote Interface Modules (RIMs)
- Flash memory allows convenient firmware upgrades
- Reports alarm conditions with user-defined priority levels
Unrivalled Level of Security
- Encryption for protection of data communication
- Supervises the cables to input devices for detection any disconnection or failures
- Enhanced anti-pass back features
- Local / Zone / Global anti-pass back
- Hard / Soft / timed anti-pass back
- Two-person Rule / Duress mode
- Door Open Alarm and Door Forced Alarm
- Missing cards management
Seamless Security Integration
- Supports various reader formats including standard 26/34-bit Wiegand and 4/8 bit Burst
- Compatible with all industry-standard security equipment
- Seamlessly integrates with CCTV, fire panel, alarm system, etc.
- Enhanced ARM/DISARM feature for integration with alarm panels or other systems
- Delayed / Free / Group ARM/DISARM
Robust High Performance
- Powerful 32-bit processor provides uninterrupted processing and quick downloads of cardholders and events
- 10/100Mbps Ethernet for fast, reliable communications
- Built-in Linux operating system guarantees a stable and secure performance
IMDC-MAIN SPECIFICATIONS
MODEL | IMDC-MAIN | |
CPU | 32bit ARM9 Microprocessor | |
Operating System | Embedded Linux | |
Memory | Program Memory | 128MByte SDRAM |
Data Memory | 128MByte Flash Memory | |
User | 200,000 Users | |
Event Buffer | 200,000 Event Buffer | |
Power / Current | DC +12V, Max.700mA | |
Communication | Ethernet | |
Ethernet | 10/100 Mbps | |
Interface |
MAX.16 of IMDC-RIM interface available via ethernet
communication(1 of IMDC-RIM for 2 of Reader, 8 Inputs, 8 Outputs)• MAX.
32 Reader available- 26bit Wiegand, 4 / 8bit Burst- 34bit Wiegand, 4 / 8bit Burst • 128 Inputs (Input type selectable)• 128 Outputs (Output type selectable) | |
LED Indicator | 21 LED indicators | |
Operating Temperature | 0° ~ +65°C (+32° ~ +149°F) | |
Operating Humidity | 10% ~ 90% Relative humidity non-condensing | |
Dimension (W x H x T) | 137mm x 137mm x 18mm | |
Weight | 148g | |
IMDC-RIM SPECIFICATIONS
|
MODEL |
IMDC-RIM | |
|
CPU |
8bit Microprocessor | |
|
Power / Current |
DC +12V, Max.350mA | |
|
Memory |
Internal Memory |
128 KByte Flash Memory |
|
External Memory |
4K SRAM | |
|
Reader |
2ea | |
|
Input Port |
8ea (Input type selectable) | |
|
Output Port |
8ea (2 FORM-C Relay Output (COM, NO, NC) / DC +12V~ +18V, Rating Max. 2A) | |
|
Ethernet |
10/100 Mbps | |
|
LED Indicator / Buzzer |
25 LED Indicators / Piezo Buzzer | |
|
Operating Temperature |
0° ~ +65°C (+32° ~ +149°F) | |
|
Operating Humidity |
10% ~ 90% Relative humidity non-condensing | |
|
Dimension (W x H x T) |
137mm x 137mm x 18mm | |
|
Weight |
168g | |

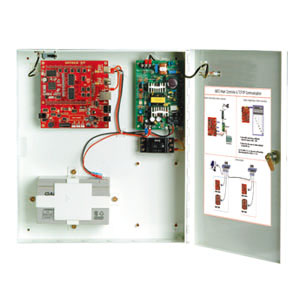

| iMDC Package
|
 | iMDC MAIN Package |
| • iMDC MAIN Board - 1ea • Steel Case (Nema Case) - 1ea • Power Supply (ID40WA) (DC12V) - 1ea • Back-up Battery (7A) - 1ea • NFB Switch - 1ea • Lamp Cable - 3ea |
|
MODEL |
IMDC-MAIN |
|
|
CPU |
32bit ARM9 Microprocessor |
|
|
Operating System |
Embedded Linux |
|
|
Memory |
Program Memory |
128MByte SDRAM |
|
Data Memory |
128MByte Flash Memory |
|
|
User |
200,000 Users |
|
|
Event Buffer |
200,000 Event Buffer |
|
|
Power / Current |
DC +12V, Max.350mA |
|
|
Communication |
Ethernet |
|
|
Ethernet |
10/100 Mbps |
|
|
Interface |
MAX.16 of IMDC-RIM interface available via ethernet communication (1 of IMDC-RIM for 2 of Reader, 8 Inputs, 8 Outputs) • MAX. 32 Reader available - 26bit Wiegand, 4 / 8bit Burst - 34bit Wiegand, 4 / 8bit Burst • 128 Inputs (Input type selectable) • 128 Outputs (Output type selectable) |
|
| LED Indicator | 16 LED indicators | |
|
Operating Temperature |
0° ~ +65°C (+32° ~ +149°F) |
|
|
Operating Humidity |
10% ~ 90% Relative humidity non-condensing |
|
|
Dimension (W x H x T) |
5.4” x 5.4” x 0.75°” (137mm x 137mm x 18mm) |
|
|
Weight |
375g (0.82lbs) | |
|
MODEL |
IMDC-RIM |
|
|
CPU |
8bit Microprocessor |
|
|
Power / Current |
DC +12V, Max.350mA |
|
|
Memory |
Internal Memory |
128 KByte Flash Memory |
|
External Memory |
4K SRAM |
|
|
Reader |
2ea |
|
|
Input Port |
8ea (Input type selectable) |
|
|
Output Port |
8ea (2 FORM-C Relay Output (COM, NO, NC) / DC +12V~ +18V, Rating Max. 2A) |
|
|
Ethernet |
10/100 Mbps |
|
|
LED Indicator / Buzzer |
Statues LED Indicator / Piezo Buzzer |
|
|
Operating Temperature |
0° ~ +65°C (+32° ~ +149°F) |
|
|
Operating Humidity |
10% ~ 90% Relative humidity non-condensing |
|
|
Dimension (W x H x T) |
5.4” x 5.4” x 0.75°” (137mm x 137mm x 18mm) |
|
|
Weight |
375g (0.82lbs) | |
