High Stability
- Self-testing feature for Self-Recovery In case of the system failure, iTDC tests itself to find the problem and recovers the system. iTDC system does not fail in any environment.
- Protection from ESD Power and ground have been separated to protect the device from ESD.
Unprecedented Scalability
- Integration with Other Security Systems iTDC can be integrated with other security systems such as CCTV, fire alarm, BAS and other systems to configure total security system.
- 30 Input/Output Ports to Control up to Four Doors Seven input ports, seven output ports and four readers are embedded to connect
with variety of sensors, alarms and other devices. In case of adding EIO88
extension board, the total numbers of input and output ports increase to eight
each, which makes it total of 30 input and output ports. (EIO88 Optional)
- Connect up to 255 iTDCs Together Using the network communication, 255 iTDCs can be connected together to configure medium or large size system.
Fast and Reliable Communication
- Optimized Communication Function Depending on the network status, the communication spend is alternated to
maintain reliable communication feature.
- Variety of Communication Function Using either serial or TCP/IP communication, it provides reliable network
system. Also using the multi-port feature, network and serial communication can
be used together. (Internal TCP/IP Module Optional)
Convenience to Use
- Door Opening Time Configurable per User The door opening time is configurable by users, which is suitable for disabled
or aged users.
- Monitoring of Door Opening and Closing Using the management software, it allows real-time monitoring and control of
door opening and closing of the whole system.
Easy Installation
- Simple Access Control System Configuration For the areas where the system configuration difficult, standalone access
control system can be configured just by connecting keypad and LCD panel to the
controller.
One of a Kind Security Features
- Two Men Operation This function is used to manage the visitors. The visitors are only accessible
when accompanied by authorized administrator. The doors are opened when two
registered cards are read together.
- Anti-Passback This function is used to prevent any entry or exit of unauthorized users by
allowing exit only when proper identification is authorized.
- Duress Mode This function is used to notify a dangerous situation or in case of the
situations where the users are forced by thieves or criminals to open the door.
Using the duress mode, the user can enter the two digit pre-configured duress
mode code and the door will open as usual, but it generates the duress alarm
output, which activates alarm event to be notified by e-mail or SMS messaging.
- ARM/DISARM This function is used to increase the security level by denying the access if
the administrator is not present. If the system is armed by the administrator,
none of the access is granted, unless the system is unarmed by the
administrator.
- Disconnection Check This function self detects whether the devices connected to the controller are
sending normal signal, if not it can be confirmed using the software.

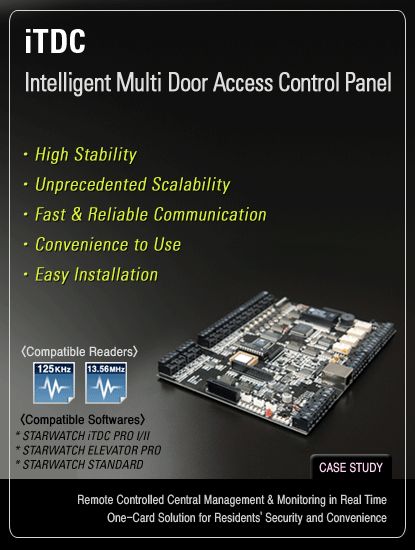

Intelligent Multi-Door [4] Access Control Panel for Access Control
System
(EIO88 required to control 3 and 4 Doors)
• Dynamic Control of Memory up to
50,000 Users / up to 29,500 Event
Buffers :
- 1,000 ~ 20,000 / 30,000 /
40,000 / 50,000 Users
- 20,000 ~ 29,500 / 3,000 / 8,000 / 14,000 Event
Buffers
• Standalone/Network Communication via RS232 / RS422 / RS485
(Max.255ch), Ethernet (Internal Ethernet Module required /optional)
•
Expansion I/O Board available (EIO88: 8 Inputs / 8 Outputs)
• Independent 7
Inputs and 7 Outputs including 4ea of 2 Form-C Relay
Outputs
• 4ea of
Reader Port for Anti-passback Function :
26bit Wiegand and 4 / 8bit Burst for
PIN
• 2 Men Operation
• ARM / DISARM Function for Alarm Panel
• 2
Levels Individual Door Opening Time Setting available for
handicapped
person
• Remain ID & Event Data and Setting Value in case of Electric
Outage
• Optional LCD display and Keypad connectable to control
for
Standalone Operation, Manual Setting
• Duress Mode Function
• Guard
Tour Management
• Spervised Reader Signal Check
• Alarm Event Monitoring
using Tamper Switch
(by Application Software)
• Communication Status via
LED Indicator
• Options: LCD display, Keypad (for standalone, manual
setting)
Internal Ethernet Module, Expansion I/O Board
• Compatible
Software: STARWATCH iTDC PRO I / II
.jpg){kind=icon}
.jpg){kind=icon}
Model
iTDC
CPU
8bit Microprocessor
Memory
Program Memory
64KByte ROM
Data Memory
512KByte Flash Memory
User
Users and Event Buffers defined available
1,000 ~ 20,000 / 30,000 / 40,000 / 50,000
Users
Event Buffer
20,000 ~ 29,500 / 3,000 / 8,000 / 14,000
Event
Buffers
Power / Current
DC 12V, Max.400mA
Reader Port
4ea (26bit Wiegand, 4/8bit Burst for PIN)
Communication
RS232 / RS422 / RS485 (Max.255ch)
Ethernet (Internal Ethernet
Module(IIM7100A)
required /optional)
Baud Rate
9,600bps (default) / 4,800bps, 19,200bps, 38,400bps
(selectable)
Input Port
7ea (Exit Button#1, Exit Button#2, Door Sensor#1, Door
Sensor#2, Aux#1, Aux#2, Aux#3)
Output Port
4ea (2 FORM-C Relay Output (COM, NO, NC)
/ DC12V~18V,
Rating Max.2A)
3ea (TTL Output / DC5V, Rating
Max.20mA)
LED Indicator
21 LED Indicators
Beeper
Piezo Buzzer
Operating Temperature
0° to +65°C (+32° to +149°F)
Operating Humidity
10% to 90% relative humidity non-condensing
Dimension (W x H x T)
5.7” x 7.3” x 0.75” (145mm x 185mm x 18mm)
Weight
221g
Certification
FCC, CE, KCC, RoHS, UL
Options (Manual Setting available
for Standalone Operation)
LCD
Character LCD (2 Lines x 16 Char)
/ 80mm x 36mm(3.15" x
1.41") Screen
Keypad
16 Key Numeric Keypad / Membrane
Internal TCP/IP Module
IIM7100A (TCP/IP Communication)
Expansion I/O Board
EIO88 ( 8 Inputs / 8 Relay Outputs )
| iTDC Package-1 (2 Doors) |
|
|
| iTDC Package-2 (2 Doors) |
|
|
| iTDC Package-3 (3 / 4 Doors) |
|
|
| iTDC Package-4 (3 / 4 Doors) |
|
|
